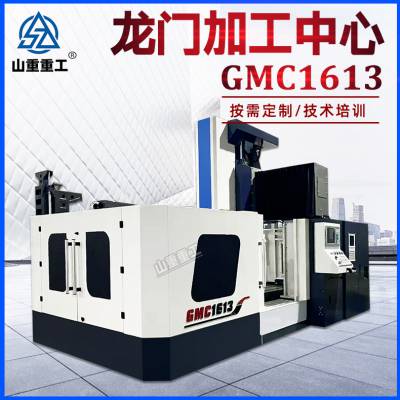

| 类型：卧式加工中心 | 品牌：山重重工 | 型号：GMC1613 |
| 界面语言：中文 | 产品类型：全新 | 是否库存：是 |
| 售后服务：整机质保一年 | 重量： 10500kg | 主电机功率： 11kw |
| 主轴转速范围：8000rpm | 刀具数量：24 | 三轴行程(X*Y*Z)：1600-1300-700 |
| T型槽尺寸(宽*数量)： 7*18*165 | 动力类型：电动 | 布局形式：立式 |
| 作用对象：五金 | 适用行业：通用 |
Specifications | Unit | GMC1613 |
Table size | mm | 1700*1100 |
X Axis travel | mm | 1600 |
Y Axis travel | mm | 1300 |
Z Axis travel | mm | 700 |
Distance from spindle nose to table surface | mm | 120-820 |
Gantry width | mm | 1350 |
T slot (slot number-width*pitch) | mm | 7-18 |
Spindle taper | BT40 | |
Max.spindle speed | rpm | 8000 |
Main motor power | kw | 11/15 |
X/Y/Zaxis serco motor power | NM | 40/30/30 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 2axis linear guide rail 45 Z向硬 | |
X/Y/Z axis lead screw | mm | X:5012 Z:4012 |
Maxtableload | kg | 2500 |
Table height from floor | mm | 800 |
X/Y/Zaxis rapid traverse | M/min | 18/24/24 |
Cutting feed speed (m/Min) | M/min | 1-10 |
Positioning accuracy (mm) | ±0.005/300 | |
Repeat positioning accuracy (mm) | ±0.004 | |
Machine dimension | mm | 4500x3300x3600 |
Machine weight | kg | 13000 |
